CEZR 6903

CEZR 6903

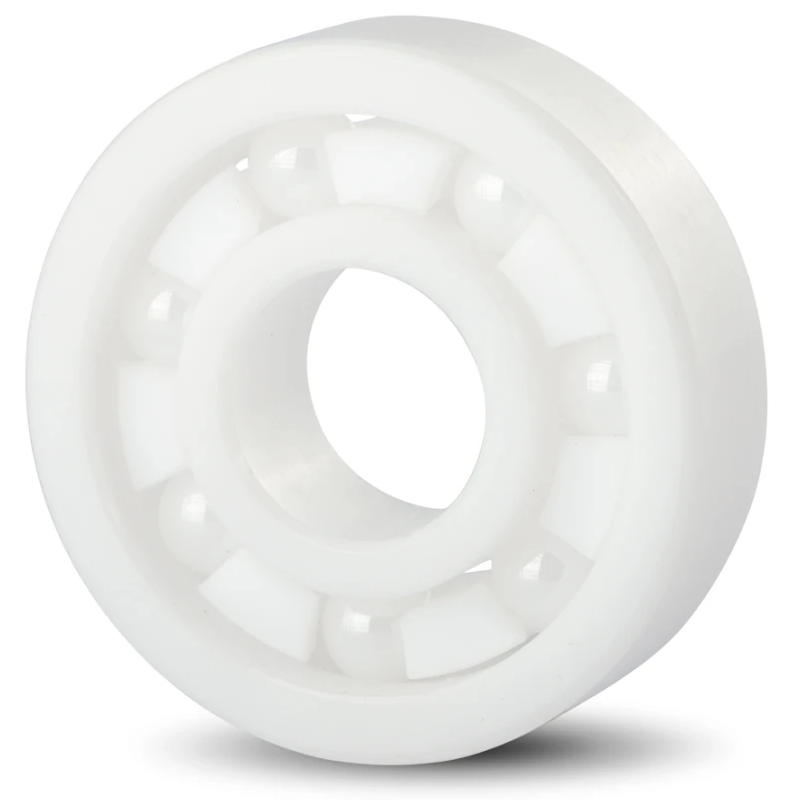

Ceramic Ball Bearings - 17 mm ID, 30 mm OD, 7 mm Width
Regular price $8.99 USD
Regular price Sale price $8.99 USD
Sale Sold out
Shipping calculated at checkout.

Free Shipping On Orders $50+

View full details
Specifications
  • System of Measurement: Metric
  • Bearing Type: Ball
  • For Load Direction: Radial
  • Construction: Single Row
  • Seal Type: Open
  • Bore Dia: 17 mm
  • Bore Dia Tolerance: -0.008mm to 0
  • Outer Dia: 30 mm
  • Outer Dia Tolerance: -0.009mm to 0
  • Width: 7 mm
  • Width Tolerance: -0.120mm to 0
  • Ring Material: Zirconia
  • Balls Material: Zro2
  • Cage Material: PEEK
  • Dynamic Radial Load: 310 lbf
  • Static Radial Load: 173 lbf
  • Max Speed (X1000 rpm): 15
  • Lubrication: Required
  • Shaft Mount Type: Press Fit
  • ABEC Rating: ABEC-1
  • Radial Clearance Trade No: C0
  • Radial Clearance: 0.003mm to 0.018mm
  • Temperature Range: -176 to 752 °F
  • RoHS: Compliant
  • Weight: 100.0 g
DESCRIPTION
Explore a wide range of high-quality bearings for all your industrial, automotive, and machinery needs. Experience enhanced durability, high-precision, and superior efficiency with our CEZR 6903 bearings. Visit us for all your bearing solutions.
